AFR-R770

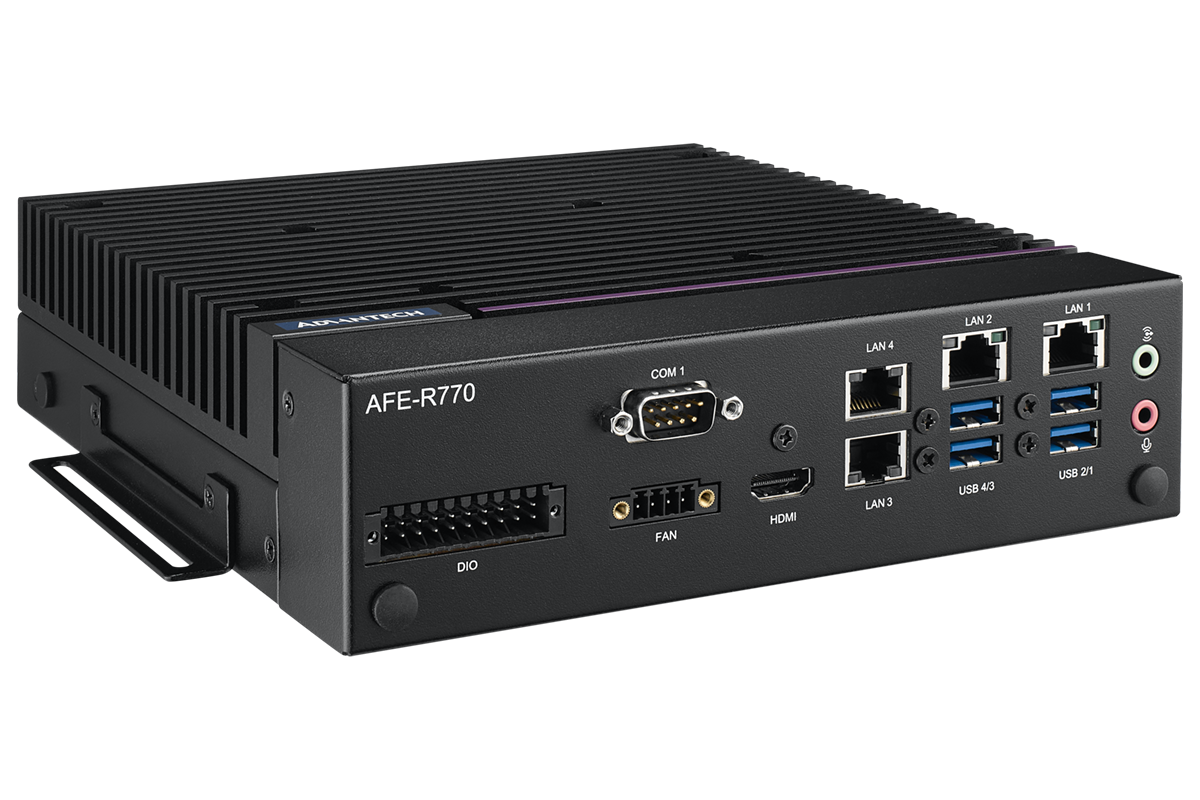

AFE-R770

Intel® 12&13th&14th Gen Core™ i3/i5/i7/i9 AMR Control System

  • Support Intel® 12th&13th&14th Gen. Core™ i3/i5/i7/i9 processor
  • Dedicate I/Os for AMR : 4x 2.5GbE, 4x USB3.2, 2x CANBus, 4x RS-232/422/485, 16bit DIO
  • 9-36VDC with switchable Ignition/PC power on mode
  • ESD protection : Contact 8KV, air 15KV
  • Wide operating temp from -20~65 °C
  • Supports Ubuntu 22.04/24.04, Win10/11, Advantech Robotic Suite

Solution​

★ Advantech Robotic Suite​

Download Installer
Quick Start Guide

SDK & Utilities​

Time Sync Viewer
Intel Robotic SDK

Peripheral​

2D Camera e-con (MIPI)
2D Camera EV2M (MIPI)
3D Camera Orbbec 335L (GMSL)
IMU Movella MTI-3-5A

Documents​

Datasheet
Manual
3D Model
